G05N
Waterproof
Main Features
- Compact size;
- Waterproof (IP65);
- H02 communication protocol (already implemented in most tracking software on the market);
- Emergency button (SOS);
- Low power mode (sleep mode), when the vehicle is parked;
- Input for detecting the vehicle's ignition status;
- Internal battery, allowing the detection of the cut of its main power;
- Output for relay control, enabling remote shutdown of the vehicle's fuel pump.
Downloads
Data Sheet

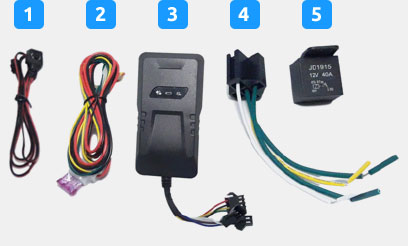

COMES WITH THE PRODUCT
- 1. Emergency button (SOS) with 1 meter cable;
- 2. Main cable with fuse;
- 3. Tracker module;
- 4. Cable for relay connection;
- 5. Relay.
Technical Specifications
| Dimensions | 90 x 49.3 x 16.7mm |
| Weight | 50g |
| Communication | GSM/GPRS |
| Bands | Quad-Band (850/900/1800/1900MHz) |
| GPS | High sensitivity MTK chip |
| GPS Channels | 66 |
| GSM / GPRS Module | MTK6260D |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | < 10m |
| TTFF (Open Sky) |
Cold Start: 45s Warm Start: 35s Hot Start: 1s |
| Voltage supply | From 9 to 36V |
| Storage temperature | From -40ºC to +85ºC |
| Operating temperature | From -20ºC to +70ºC |
| Internal Battery | 3.7V/220mAh |
| Power consumption (in operation) | 50mA |
| Power consumption (standby) | 5mA |
| Memory capacity | 1400 positions |
| Waterproof | IP65 |
Optional Accessories
- 1. Microphone with 1 meter cable;
- 2. Cable for speaker connection.
